11. Electricity Supply and Facility Model
This classroom should be equipped with the following electrical equipment and facilities.
- Electricity (SINGLE PHASE, 3WIRE) should be provided through the school's existing electrical system.
- But it should distribute electricity in the room by means of an MCB KIT in that room.
- The classroom should be wired for 14 13A Plug bases.
- Each for a table where these plug base tablet computers will be installed.
- 04 should be arranged to the wall where the smart board is installed.
- Apart from this, Ceiling LED LAMP 05 or tube light should be installed for the classroom.
- Installation of 04 fans is required to maintain ventilation in the classroom.
- It is recommended to make a layout with MAIN BREAKER, Min. BUSBAR RATE and CIRCUIT BREAKER suitable by an electrician.
A rough cost estimate is given below.
| NO | ITEM | UNIT COST (Rs.) | QUANTITIES | AMOUNT (Rs.) |
|---|---|---|---|---|
| 01 | Building wires | 18,000.00 | 2 | 36,000.00 |
| 02 | EARTH WIRE 7/0.53MM | 14,000.00 | 1 | 14,000.00 |
| 03 | MAIN BREAKER, Min. BUSBAR, CIRCUIT BREAKEs | 20,000.00 | kit | 20,000.00 |
| 04 | 13A Plug base | 850.00 | 14 | 11,900.00 |
| 05 | Wiring cost | 800.00 | 23 | 18,400.00 |
| 06 | 32MM x 20MM pvc Casing | 940.00 | 15 | 14,100.00 |
| Total | 114,400.00 | |||
This is an approximate cost and may vary depending on the prevailing market conditions and the need of the classroom chosen by the school. A suitable technician can arrange the equipment and cost to suit the school.
Note: This requirement can be varied if the charging racks are provided to each smart classroom
For electrical equipment :-
| NO | ITEM | UNIT COST (Rs.) | QUANTITIES | AMOUNT (Rs.) |
|---|---|---|---|---|
| 07 | Ceiling Fan | 16,000.00 | 4 | 64,000.00 |
| 08 | Ceiling LED LAMP | 3,100.00 | 5 | 15,500.00 |
| Total | 79,500.00 | |||

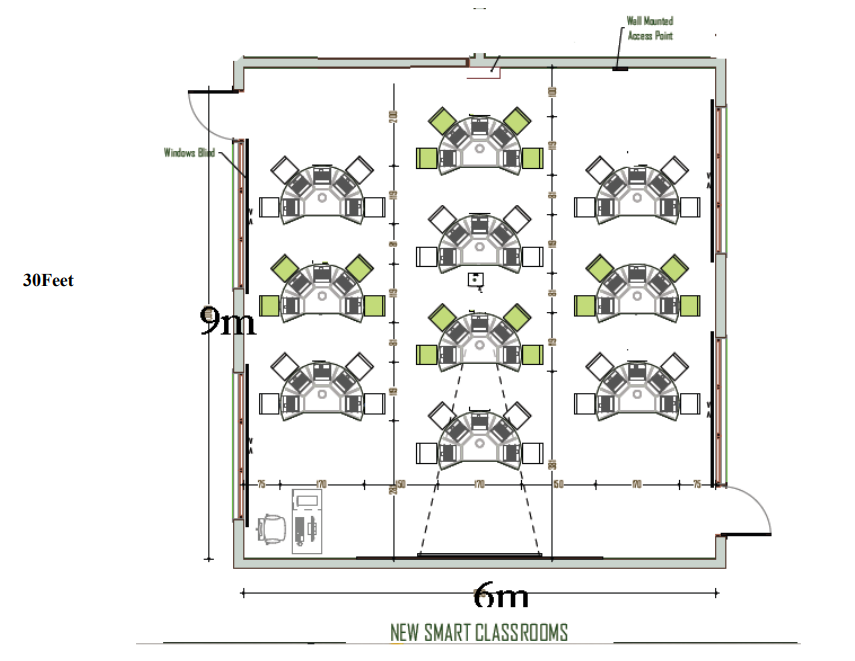

Smart lab - Option 01

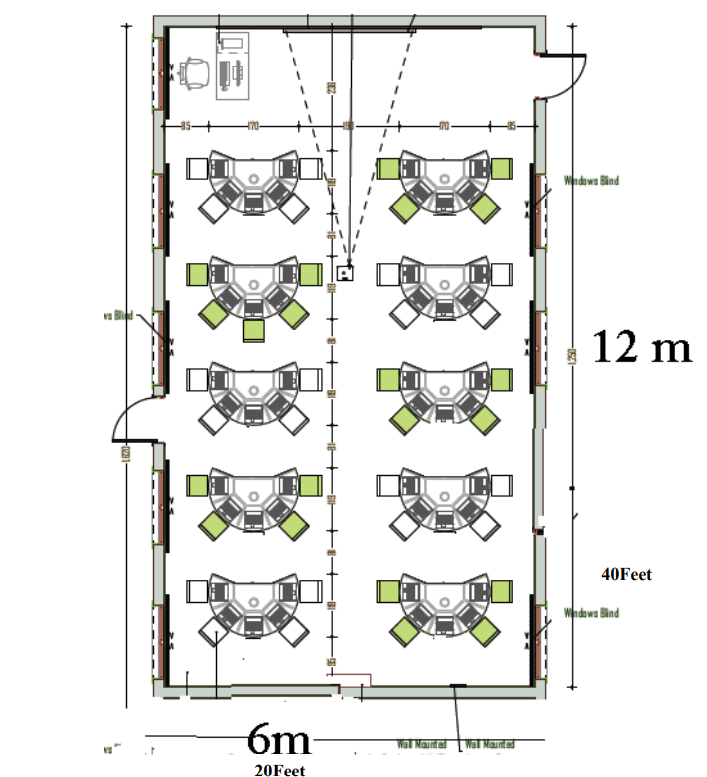

Smart lab - Option 02
